Ingenico DX8000

The Ingenico DX8000 is a modern Android-based payment terminal designed for merchants who need a flexible and mobile device for accepting electronic payments in-store.

At Nexi Switzerland, the DX8000 is primarily positioned as a standalone terminal. It is particularly suited for merchants who want a compact touchscreen device with mobile connectivity, a modern user interface, and support for common payment methods used in Switzerland.

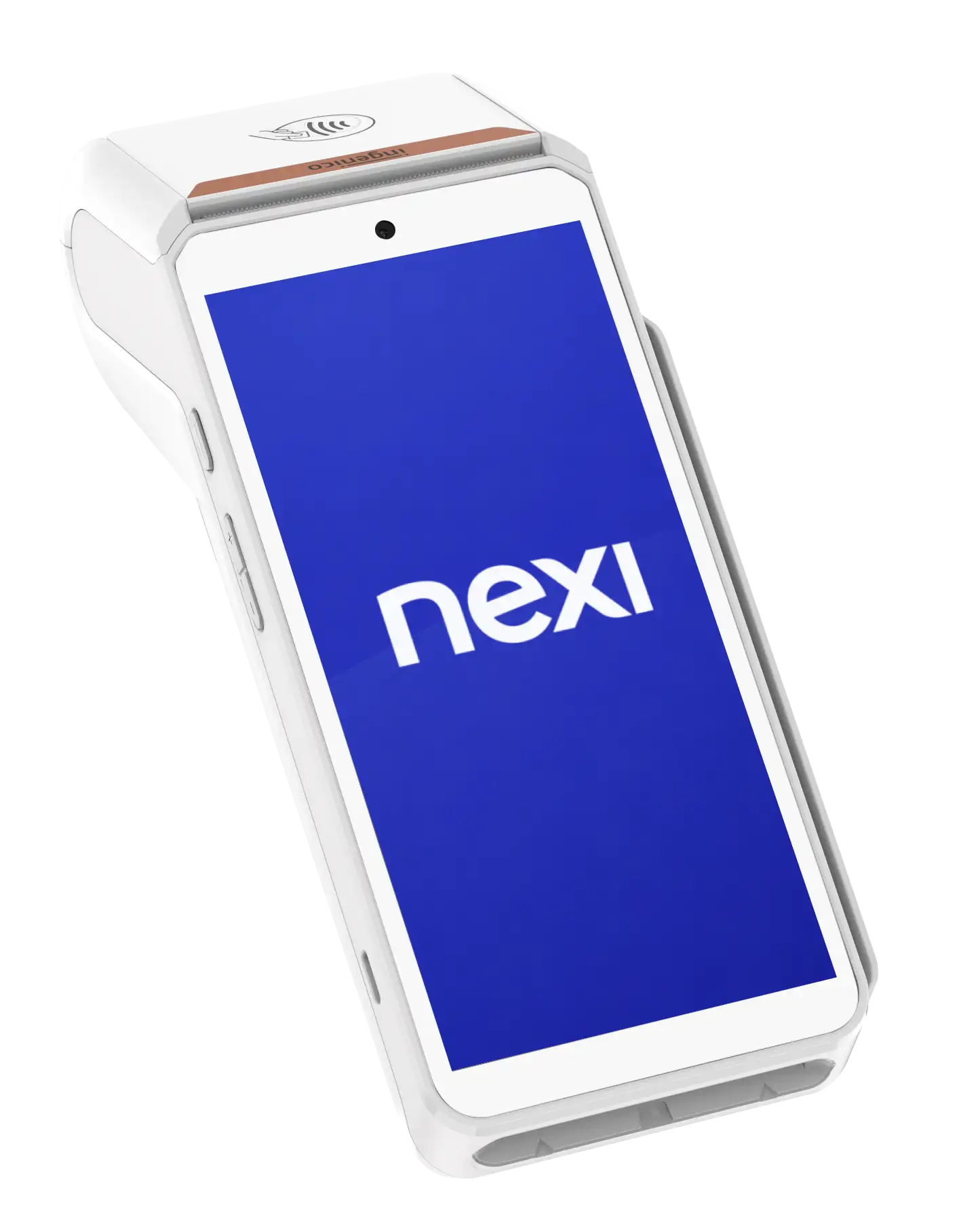

Ingenico DX8000 payment terminal.

Features

The DX8000 supports a broad range of payment and operational features, including payments, refunds, reporting, and receipt handling. Additional capabilities such as tipping, QR-based payments (e.g. TWINT), and Dynamic Currency Conversion (DCC) can be enabled depending on the merchant setup.

For a full overview of available terminal features and their availability across devices, please refer to Terminal Features.

Typical Use Cases

The DX8000 is designed for merchants who need a flexible and modern payment terminal for in-store acceptance. It is particularly well suited for retail environments with counter-based payments, hospitality and service settings, and businesses that benefit from mobile connectivity. It is also a strong fit for merchants looking for a touchscreen-based payment experience and for setups where optional features such as tips, QR payments, or DCC may be relevant.

Key Characteristics

The DX8000 is an Android-based standalone payment terminal with a modern touchscreen interface and a compact form factor. It is designed to support mobile and wireless operation while providing the core payment capabilities expected in the Swiss market.

Depending on configuration, the terminal supports contactless, chip, and magnetic stripe card acceptance, as well as mobile wallets. Additional capabilities such as QR-based payments, Dynamic Currency Conversion (DCC), and tipping can be enabled based on the merchant setup.

Payment Methods

Depending on the merchant setup and the services enabled, the DX8000 can support a broad range of payment methods. This includes international card schemes, debit and credit cards, and mobile wallets. Where configured, the terminal may also support QR-based payment methods such as TWINT, as well as other alternative payment methods.

For the full list of supported payment methods and any provider-specific requirements, refer to the general Payment Methods documentation.

The visible menu and the functions available on the DX8000 may vary depending on the merchant configuration, enabled services, activated payment methods, terminal state, and contractual setup.

As a result, different merchants may see different shortcuts, menu entries, or transaction types on the device.

Specifications

The following specifications describe the hardware and technical capabilities of the Ingenico DX8000 (premium configuration).

Core

Operating System: Android (Android 10 Security OS)
Processor: Quad-core A53, 1.3GHz
Memory: 16GB Flash, 2GB RAM
Display: 6” HD+ (1440 × 720), touchscreen
Battery: 3350mAh (Li-ion)

Payment & Connectivity

Card Readers: Chip (EMV), Contactless, Magnetic stripe
Mobile Network: 4G (fallback to 3G/GPRS)
Wi-Fi: 2.4GHz & 5GHz
Bluetooth: 4.2 (BLE)
Positioning: GPS

Hardware

Camera: Rear camera (barcode scanning support)
Printer: Integrated thermal printer (40mm paper width)
SIM / SAM: 2 SIM + 2 SAM
Ports: USB-C
Dimensions: 198 × 83 × 62.5 mm
Weight: 450g
Certification: PCI PTS v6
